Microsoft Teams Integration with Cisco Video Conferencing
If you’re in the situation where you’re using Microsoft Teams meetings at home but have Cisco video conferencing devices in the office, you’re probably looking for a way to make these work together.
In this post, we run through all your options for Microsoft Teams integration with Cisco video conferencing.
Jump to:
- Cisco Webex Meetings for Microsoft Teams
- How to join a Microsoft Teams meeting from a Cisco device
- Microsoft Teams and Webex message interop
- Microsoft Teams and Webex external federation
- Webex Calling in Microsoft Teams
- Meetings between Webex and Microsoft Teams
Cisco Webex Meetings for Microsoft Teams
You can use the Cisco Webex Meetings app to schedule, start, or join a Cisco Webex meeting or Webex Personal Room right from within Microsoft Teams.
All you need to do is install the Cisco Webex Meetings app into Microsoft Teams. If you don’t have admin access, you’ll need to ask your Microsoft 365 administrator to add this for you.
Once you have the app, you will get a Webex tab in Microsoft Teams.
Once installed, you can view your upcoming meetings and join straight from the list.
You can also join meeting rooms or start a new meeting with a recent contact - all without leaving Teams.
When a meeting is about to start, you can even get a Webex notification in Teams.
This integration is great for getting the most of virtual meetings when you’re working away from the office.
How to join a Microsoft Teams meeting from a Cisco device
If you’re phasing out legacy Cisco equipment because you now use Teams, the process probably isn’t big bang.
If you’re migrating users and rooms from one platform to another, there will be an overlap period where both are in play.
At this point, it’s important to ensure your new Microsoft 365 software integrates with your existing Cisco equipment. From 2023, Microsoft Teams has been able to run natively on Cisco Room and Desk devices Certified for Microsoft Teams thanks to a new partnership.
The below endpoints can't join Teams meetings without native cloud video interop to bridge the connection.

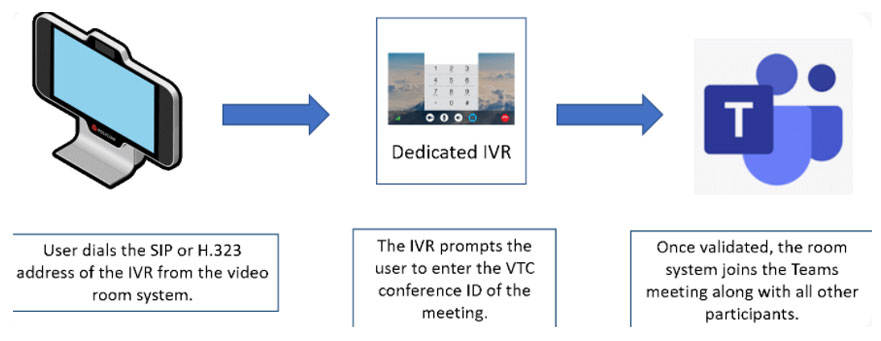

Once installed, here’s how you can join a Microsoft Teams meeting from Cisco devices:
Using the Cisco DX80 with Microsoft Teams
To use Microsoft Teams on Cisco room kit like the DX80, follow these instructions:
- Dial the SIP address provided in the Join with a video conferencing device section of the Teams meeting
- Enter the VTC conference ID when prompted
- Join the Teams meeting
Using the Cisco SX10 with Microsoft Teams
To use Microsoft Teams on Cisco room kit like the SX10, follow these instructions:
- Dial the SIP address provided in the Join with a video conferencing device section of the Teams meeting
- Enter the VTC conference ID when prompted
- Join the Teams meeting
Joining Microsoft Teams meetings from any Cisco device
Joining a Teams meeting from any Cisco device can be simple for some users, depending on your bridging provider. You can usually do the following:
- Dial the SIP address provided in the Join with a video conferencing device section of the Teams meeting, as long as SIP-enabled voice is present
- Enter the VTC conference ID when prompted
- Join the Teams meeting
Can Webex Teams communicate with Microsoft Teams?
The Webex portfolio used to be split to include Webex Teams and Webex Meetings. Cisco has now combined the two apps to make a single Webex app for both meetings and messaging.
Webex users who choose to stay in Webex for their messaging will likely be using Webex Teams instead of Webex Meetings.
If you’re a Teams user and you need to communicate with a colleague or external contact in Webex, you have a few options.
Microsoft Teams and Webex message interop
If you have one department that uses Webex and another that uses Microsoft Teams, you can enable message interop between the two platforms.
This means you can send messages from Webex to Microsoft Teams.
All you need to do is install Mio in the background to get this set up.
For example, if your sales team uses Webex because they always used Webex Meetings in the past, they can now chat with your customer service team who use Microsoft Teams.
You can use message interop internally for both direct messaging and working in channels.

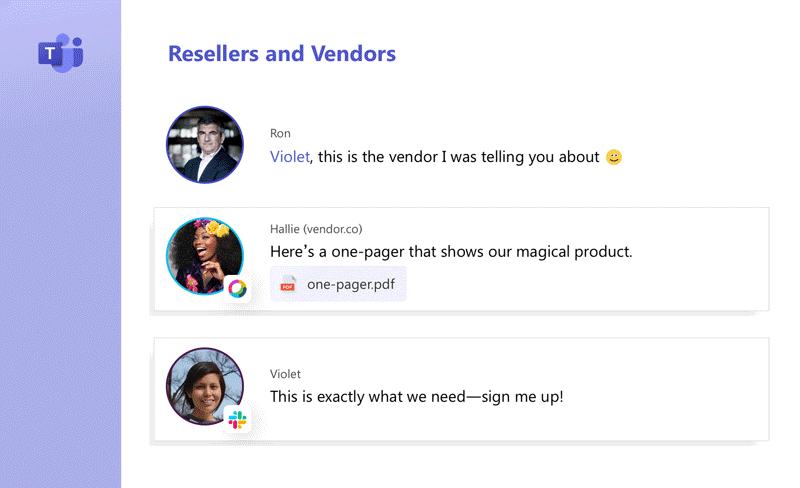

Microsoft Teams and Webex external federation
If you need to message from Microsoft Teams to an external contact - like a contractor or partner - you can do this by installing a universal channel.
You’ll need to be a Microsoft admin - or get your Microsoft admin to authorise the app - so you can install the Universal Channels app in the background.
Once installed, you create a new channel in Microsoft Teams and send a link to your external contact who uses Webex.
Once they join, you’ve created a channel across platform for you both to collaborate in.

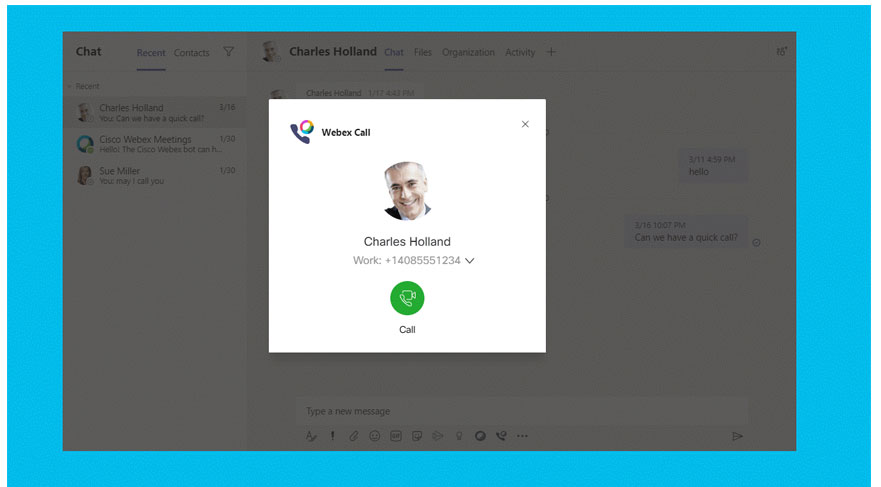

Webex Calling in Microsoft Teams
Cisco Webex also provides a calling platform since its acquisition of BroadSoft in 2018.
While adding a calling platform to Cisco’s portfolio, it also means any BroadSoft customers who want to use Microsoft Teams must integrate the two.
If you want to use Webex Calling from Microsoft Teams, you need to download the Webex call app for Microsoft Teams.
Once installed, when your users start an external call from Microsoft Teams, it will use the Webex calling platform.
To start this process:
- Check all users who need this integration are verified in the Webex Control Hub
- Make sure they are registered to Cisco Webex Calling or in your Cisco Unified Communications Manager (CUCM)
- Install the Webex app for each user you need to use Webex Calling
- Update phone numbers for users in the Azure Active Directory (AD)
- If you don’t already, change your permission policies to allow third-party apps
- Then, in the Microsoft Teams Admin Center, click Teams Apps then Manage Apps
- Search for Webex Call and change to Allow
Next time your users log in, they will be using the Webex Calling platform even when they start an external call from Microsoft Teams.
While this sounds great on the surface, it does open up a new window when you dial.
If you’ve moved to Microsoft Teams to have all your communications in one place, this is a little beside the point.

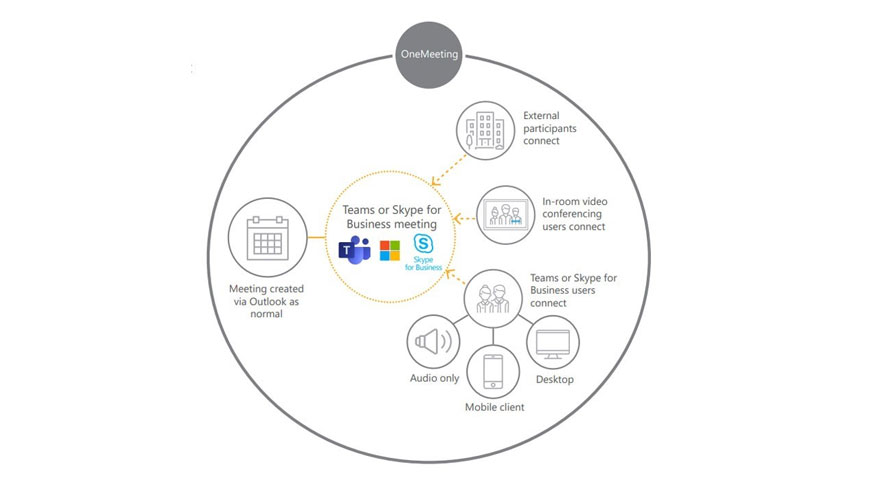

Meetings between Webex and Microsoft Teams
To facilitate meetings between Webex users and Microsoft Teams users, many bridging platforms provide a one-touch join experience.
When you configure your platform in the background, meeting participants on either Webex or Microsoft Teams can join the same meeting using a unique URL.
When you click the meeting URL, you can join from whichever meeting app you prefer - Webex or Microsoft Teams.
Joining Webex meetings from Microsoft Teams in the office
Many bridging platforms work for both remote meetings and in-person meetings. You don’t even have to change video devices, with most allowing you to join any meeting from any device.
Picture the scene:
- You’ve rolled out virtual meeting rooms to your users so they could all work from home during the pandemic.
- You already had video conferencing equipment installed in your meeting rooms and boardrooms.
- Because you needed the quickest solution to work from home, your virtual meeting rooms and existing video conferencing system in your office aren’t the same.
- People are starting to use the office again but your video platforms don’t work with each other.
If your scenario is something like this, you’re not alone.
Sandwiched between the millions of Microsoft Teams users are millions of users with other video conferencing services.
In your company, this could be hundreds or thousands. Even if it’s a handful, it’s an issue you shouldn’t have to deal with.
Video interoperability
Some platforms use Pexip’s video interoperability service to connect your legacy kit in the office with Microsoft Teams at home.
By connecting your video platforms together, you create one-click join experience for your meeting participants.
Pexip apps and APIs creates a bridge between any SIP or H323 video conferencing system and the Microsoft cloud.
To speak to someone at Nasstar about how we can help you with Microsoft Teams integrations, contact us today.
